Graphs

x/dag is for apps that show or edit a directed acyclic graph: a data pipeline, a build, a workflow. It has two packages:

• dag is the graph model. It has no user interface and no dependency on the rest of Bellui’s widgets, so you can use it in a server or a command-line tool too.
• dagwidget draws a graph as cards joined by curved edges, and lets the user pan, zoom, select, move, connect and delete, with undo.

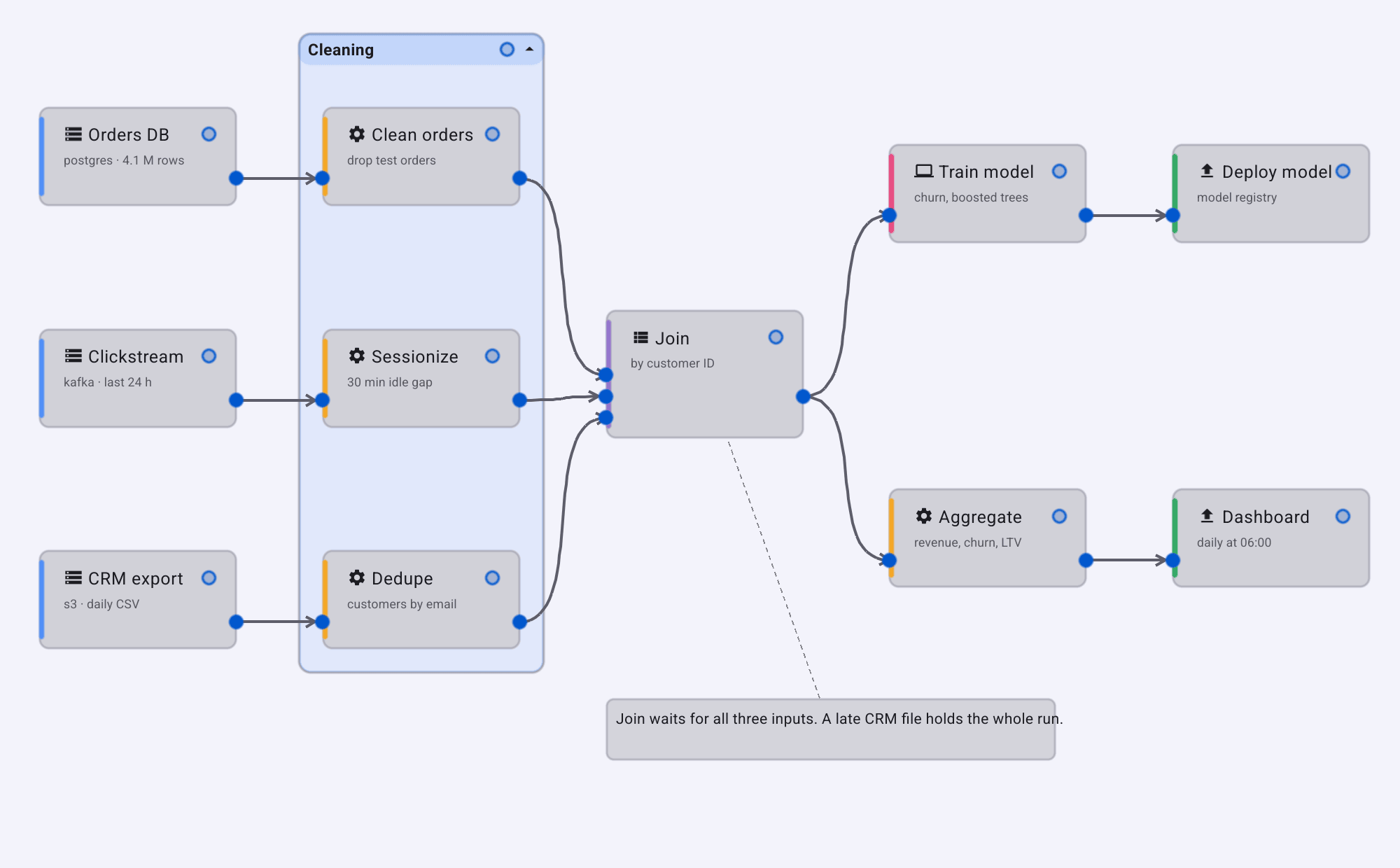

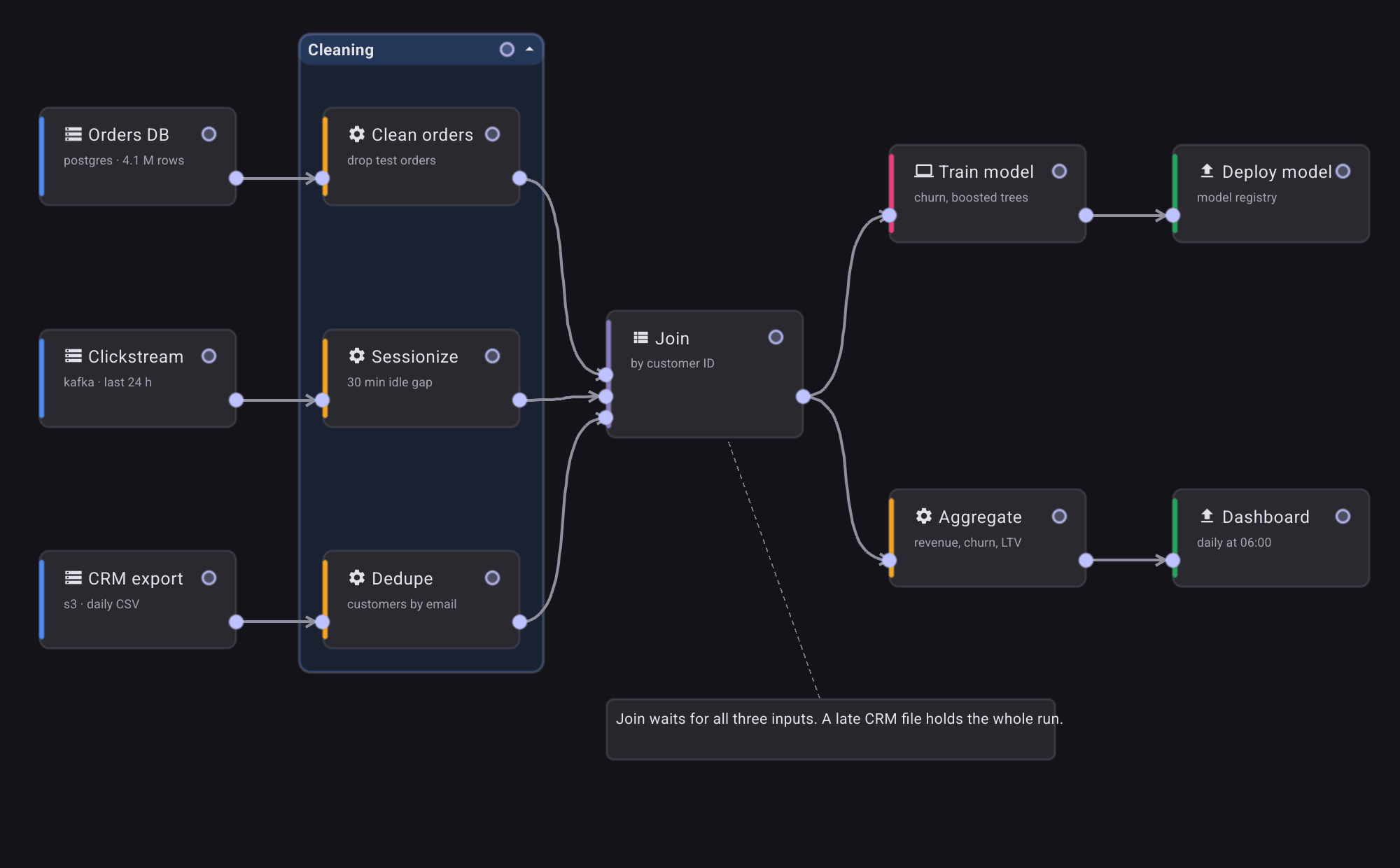

The screenshot shows a pipeline with a group, an annotation anchored to a node, and cards styled by a NodeStyler (see Node appearance).

Install

go get github.com/belluikit/bellui/x/dag@latest

The graph model

A dag.Graph holds nodes and edges. A node has named input and output ports, and an edge always runs from one node’s output port to another node’s input port. An edge names a port by its node ID and port name, so give the ports of one node different names: if an input and an output share a name, the edge finds the input.

g := dag.NewGraph("etl", "Nightly import")

in := func(name string) dag.Port { return dag.Port{Name: name, Direction: dag.PortInput} }
outp := func(name string) dag.Port { return dag.Port{Name: name, Direction: dag.PortOutput} }

_ = g.AddNode(&dag.Node{ID: "read", Label: "Read CSV", Inputs: []dag.Port{in("retry")}, Outputs: []dag.Port{outp("rows")}})
_ = g.AddNode(&dag.Node{ID: "clean", Label: "Clean", Inputs: []dag.Port{in("in")}, Outputs: []dag.Port{outp("out")}})
_ = g.AddNode(&dag.Node{ID: "load", Label: "Load", Inputs: []dag.Port{in("in")}, Outputs: []dag.Port{outp("done")}})

// An edge runs from an output port to an input port. A port is found by
// node and name, so the ports of one node need different names.
_ = g.AddEdge(&dag.Edge{ID: "e1",
	Source: dag.PortID{NodeID: "read", Name: "rows"},
	Target: dag.PortID{NodeID: "clean", Name: "in"}})
_ = g.AddEdge(&dag.Edge{ID: "e2",
	Source: dag.PortID{NodeID: "clean", Name: "out"},
	Target: dag.PortID{NodeID: "load", Name: "in"}})

// The graph refuses an edge that would close a loop.
err := g.AddEdge(&dag.Edge{ID: "e3",
	Source: dag.PortID{NodeID: "load", Name: "done"},
	Target: dag.PortID{NodeID: "read", Name: "retry"}})
fmt.Fprintln(&out, "loop refused:", errors.Is(err, dag.ErrCycleDetected))

AddEdge checks every edge before adding it and returns an error instead if:

• an edge with the same ID is already in the graph (ErrEdgeExists);
• either node does not exist (ErrNodeNotFound), or either port does not exist on its node (ErrPortNotFound);
• the source is not an output or the target is not an input (ErrPortDirection);
• the target input already has an edge; an input accepts one connection (ErrTargetOccupied);
• the edge would create a cycle (ErrCycleDetected);
• the graph has a component registry and the two ports carry incompatible stream types (ErrStreamIncompat, see Components).

Test for them with errors.Is. WouldCycle asks the cycle question without adding anything. Removing a node also removes its edges and anything attached to it.

TopologicalOrder returns the nodes in an order where every node comes after the nodes it depends on, ready for execution:

order, err := g.TopologicalOrder()
if err == nil {
	for _, n := range order {
		fmt.Fprintln(&out, "run", n.Label)
	}
}

The graph’s methods are safe to call from several goroutines.

Besides nodes and edges, a graph can hold:

• Groups, boxes around several nodes, which can be collapsed. A node is in at most one group. Group edges say that everything in one group comes before everything in another, and TopologicalOrder respects them.
• Link edges, plain lines between two nodes with an optional label. They carry no data, may form cycles, and are ignored by TopologicalOrder.
• Annotations, text notes placed freely or attached to a node, edge or group.

Saving and loading

data, err := dag.MarshalGraph(g) // PXF text
if err != nil {
	panic(err)
}
g2, err := dag.UnmarshalGraph(data)
if err != nil {
	panic(err)
}
fmt.Fprintf(&out, "reloaded %d nodes and %d edges\n", len(g2.Nodes), len(g2.Edges))

MarshalGraph writes the graph, including positions, groups, link edges and annotations, as PXF text, the same format Bellui uses for its own settings files. GraphToProto and GraphFromProto convert to and from the Protocol Buffers message in dag/dagpb if you prefer another encoding. Loading goes through the same validation as AddEdge: an entry that is malformed, would create a cycle or refers to something missing is dropped, and the rest of the graph loads. Only data that cannot be decoded at all makes UnmarshalGraph fail.

Layout

dag.LayeredLayout computes a position for every node. It puts the nodes in layers by the longest path that reaches them from a node with no inputs, with data flowing left to right, and orders each layer to reduce crossing edges. It returns the positions without changing the graph. NeedsLayout reports whether a graph arrived without positions, for example from code that never set them.

The canvas

dagwidget.NewDAGCanvas shows a graph and lets the user work with it:

g := pipeline() // nodes and edges, all at position (0, 0)
c := dagwidget.NewDAGCanvas(g)
if dag.NeedsLayout(g) {
	_ = c.AutoLayout() // left-to-right layers
}

status := widget.NewLabel("Click a node.")
c.OnNodeSelected = func(id string) { status.SetText("Selected " + g.Nodes[id].Label) }
c.OnGraphChanged = func() { status.SetText("The graph changed.") }

AutoLayout runs the layered layout and moves the nodes, as one step the user can undo.

What the user can do with the mouse and keyboard:

• Pan by dragging empty space; zoom with the scroll wheel, centred on the pointer.
• Select a node, edge, group or annotation by clicking it. Double-click or Enter activates a node or group (OnNodeActivated, OnGroupActivated), for example to open its settings.
• Move a node by dragging it, and resize it with its handle. Dropping a node into a group makes it a member.
• Connect by dragging from an output port to an input port. The pointer only snaps to ports where the edge would be valid. Dragging an edge’s end away from its port detaches it.
• Delete the selection with Delete or Backspace. Undo and redo with the usual shortcuts.
• Right-click an element to fire its On...SecondaryTapped callback, which receives the pointer event so you can show a context menu there.

When you add or remove things from code, use the canvas’s own methods (c.AddNode, c.RemoveNode, c.AddGroup, and so on). They change the graph and update the drawing together. After replacing the whole graph, call LoadGraph.

Read-only canvases

Capabilities decides which edits the user may make. A new canvas allows everything. The zero value allows nothing, which suits a monitoring view: the user can still pan, zoom and select.

editable := widget.NewCheck("Editable", func(on bool) {
	if on {
		c.Capabilities = dagwidget.AllCapabilities()
	} else {
		c.Capabilities = dagwidget.Capabilities{} // read-only
	}
	c.Refresh()
})
editable.SetChecked(true)

Each field covers one kind of edit, such as ConnectEdges, MoveResize or RemoveNodes. Capabilities limit only the user. Your own code can still change the graph.

Node appearance

Set c.NodeStyler to a function that returns a NodeStyle for each node: an icon, a subtitle and an accent colour. Base it on the node’s TypeTag or Metadata. Call RefreshNodeStyles after changing it.

Components, palette and properties

For an editor where users build graphs from a fixed set of building blocks, describe each block as a dag.Component: its ports, the stream type each port carries, and its configurable properties. Put them in a registry, and give the registry to the graph:

text := dag.StreamType{Name: "text/line"}
reg := dag.NewRegistry()
reg.MustRegister(&dag.Component{
	ID: "file_source", Name: "File", Category: "Sources",
	Outputs:    []dag.PortDef{{Name: "lines", Direction: dag.PortOutput, Stream: text}},
	Properties: []dag.PropertyDef{{Key: "path", Label: "Path", Kind: dag.PropertyString, Default: "input.txt"}},
})
reg.MustRegister(&dag.Component{
	ID: "grep", Name: "Grep", Category: "Transforms",
	Inputs:     []dag.PortDef{{Name: "in", Direction: dag.PortInput, Stream: text}},
	Outputs:    []dag.PortDef{{Name: "out", Direction: dag.PortOutput, Stream: text}},
	Properties: []dag.PropertyDef{{Key: "pattern", Label: "Pattern", Kind: dag.PropertyString, Required: true}},
})
reg.MustRegister(&dag.Component{
	ID: "stdout", Name: "Print", Category: "Sinks",
	Inputs: []dag.PortDef{{Name: "in", Direction: dag.PortInput, Stream: text}},
})

g := dag.NewGraph("p1", "Untitled")
g.Registry = reg // edges between incompatible stream types are refused

With g.Registry set, an edge is refused unless the source port’s stream type matches the target’s. The stream type named * matches anything.

dagwidget has two widgets that work with the registry. The palette lists the components by category; the user clicks one, or drags it onto the canvas, to add a node. The properties panel shows a form for the selected node’s properties, a group’s label and colour, or an annotation’s text. Edits made there go through the canvas’s undo stack.

c := dagwidget.NewDAGCanvas(g)
palette := dagwidget.NewPalette(reg, c) // click or drag a component onto the canvas
props := dagwidget.NewPropertiesPanel(reg, c.Commands)
props.CanvasRef = c

c.OnNodeSelected = func(id string) { props.SetNode(g.Nodes[id]) }
c.OnGroupSelected = func(id string) { props.SetGroup(g.Groups[id]) }
c.OnAnnotationSelected = func(id string) { props.SetAnnotation(g.Annotations[id]) }
c.OnSelectionCleared = func() { props.SetNode(nil) }

A node made from a component stores its property values as JSON in Node.Metadata, starting from each property’s Default.

Licence

x/dag is BSD 3-Clause licensed, like Bellui. Its Protocol Buffers messages are declared in the package bellui.dag.v1.
